1 Color Roll to Roll Ribbon Screen Printing Machine (GW-BD150-W)

  • Model number:GW-BD150-W
  • Printing area:150*400mm
  • Printing speed:1000times/Hr
  • Machine size:2200*850*1550mm
  • Gross weight:350kgs
  • MOQ:1
  • Payment terms:T/T
  • Package way:plywood
  • Delivery way:By Ocean
  • Lead time:15 workdays

Roll to Roll Ribbon Screen Printing Machine


This machine is mainly used for all kinds of ribbon printing, the machine adopts a double reel mode, so that the printing and roll are more stable, and the screen frame is snap-off mode when printing,which can be applied to printing with different inks.The machine is controlled by PLC and touch screen, which is safe and simple to operate.The unique oven design is equipped with hot air circulation. The product can pass through the oven in double-layered to shorten the baking time and improve the printing output.


1. The screen frame can be fine-tuned forth / back, left / right

2. When cleaning the screen, the screen can rise/fall automatically

3. Semi automatic and automatic printing modes

4. The oven temperature can be adjusted at will

5. Double-layer feeding oven with hot air circulation system

6. Electric control for printing pulling, pulling length adjustable

7.The receiving motor has an automatic on or off function

8. Left/right movement electric control, printing stroke adjustable

Technical parameter:

1.  Print size: 150*400mm
2.  Max.screen frame: 300*800mm
3.  Power:3KW
4. Air pressure:6-8par
5.  Machine size:2200*850*1550mm
6.  Package:1900*900*1700mm
7.  Max.printing speed:  1000times/hr
8.  Voltage: 220V

Technical parameter:
Printing area
Max screen frame size
Oven power
Air pressure
Machine size
Packing size
Printing speed
Machine voltage
220v single-phase 4.5KW


1. The machine is solid printing and color fastness,it is perfect for all kind of label printing especially for dark color materials 2. It is small dimension, low energy consumption 3. With IR drying system,the products can be dried directly after printing 4. It is single color screen printing press with sensor allow accurate repeat printing. 5. It is also available for double side printing and suitable for security identification ink apply on woven labels as well. 6. The screen frame can rise independently,like this,each to change the printing ink 7. It has Snap-off function 8. With IR drying system
Details Images
PLC+touch screen panel,easy to operate

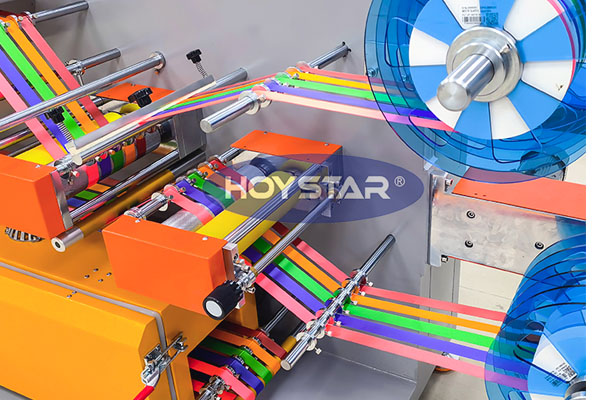

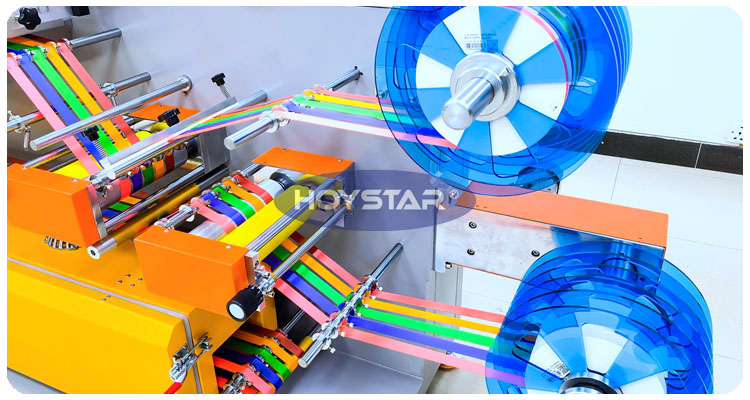

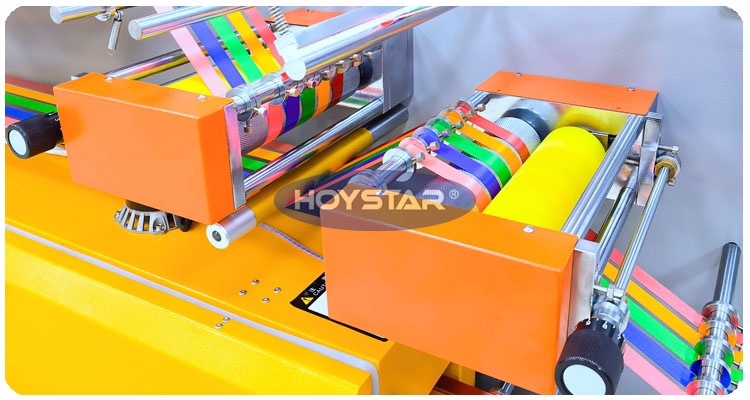

With double reel

Solid structure and runs smoothly

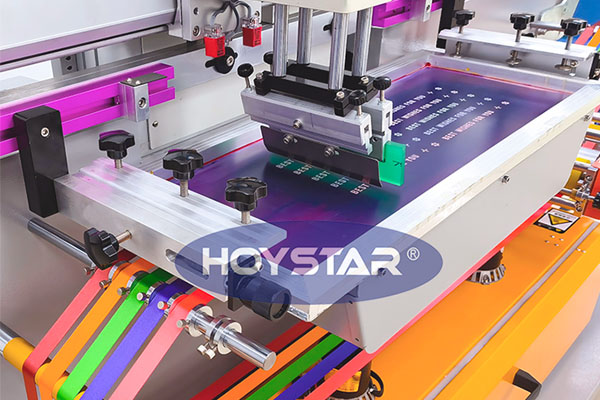

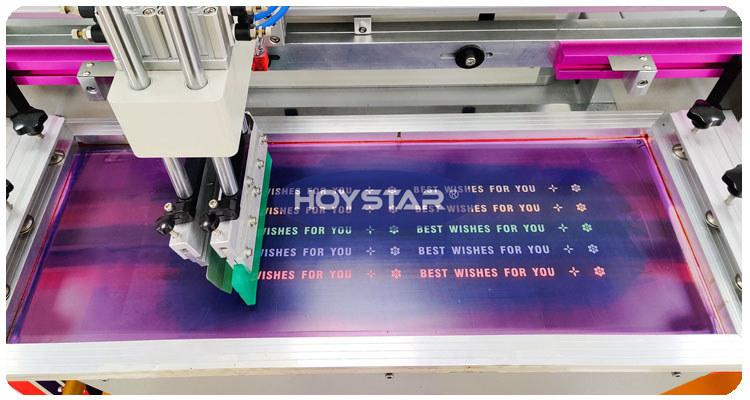

Screen frame with pattern,we can help you to make it if needed

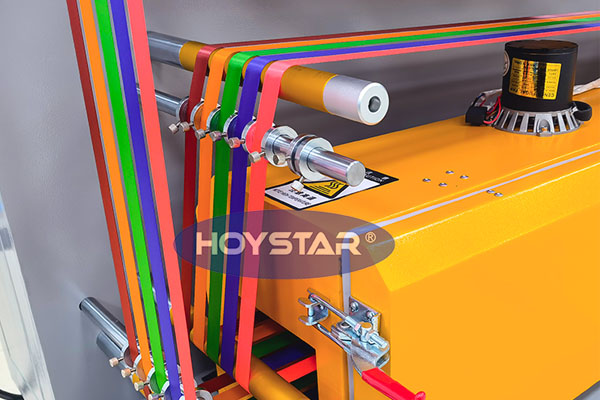

Through the oven in double-layered to shorten the baking time

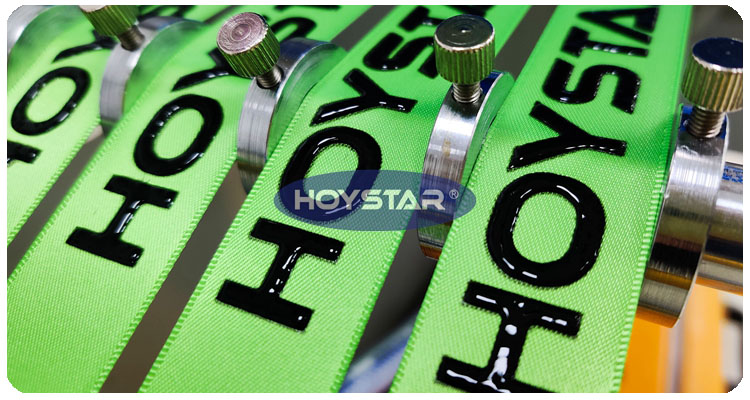

Printed Sample Show

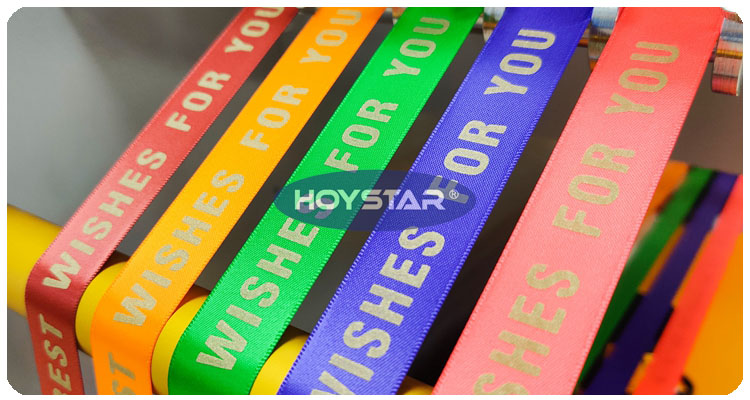

Printing with gold ink

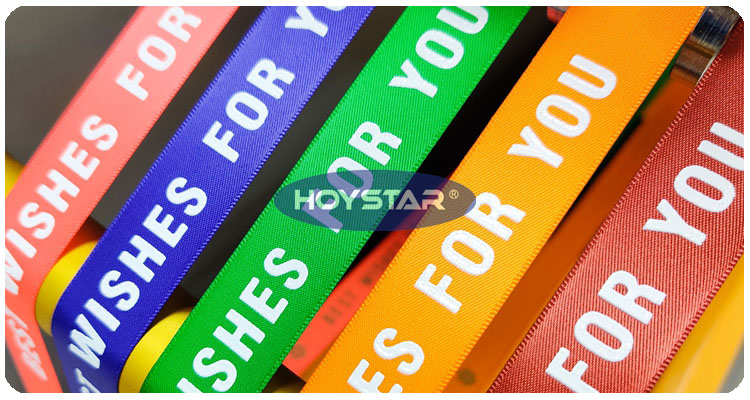

Printing with white plastisol ink

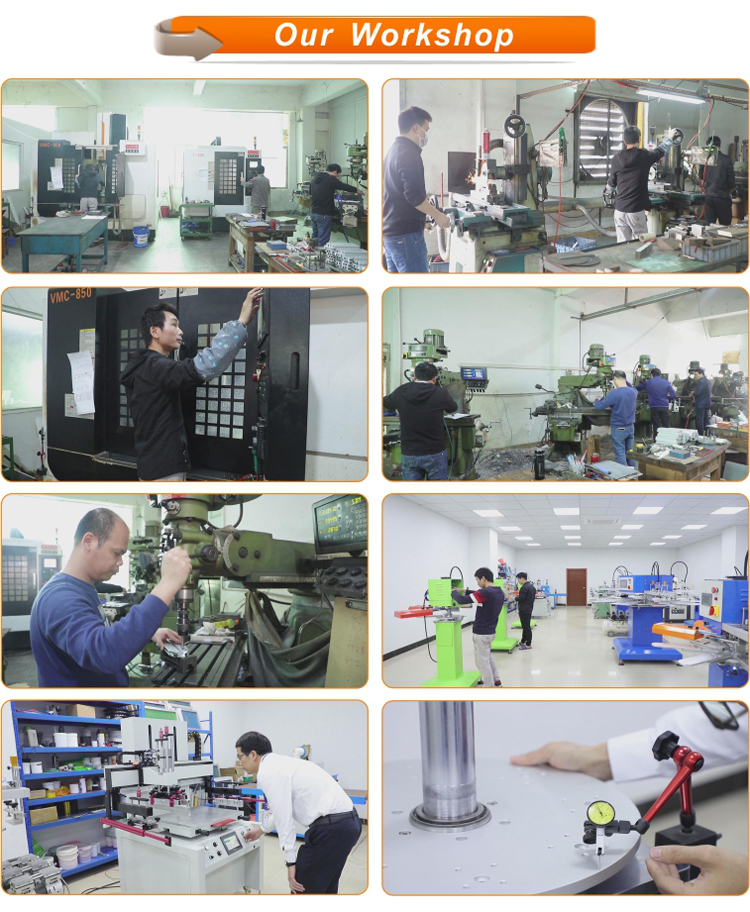

Our company
