1 Color Roll to Roll Screen Printing Machine for Printing Ribbon

  • Model number:GW-BD150
  • Printing area:150*300M
  • Printing speed:800times/Hr
  • MOQ:1 unit
  • Payment terms:T/T
  • Package way:plywood case
  • Delivery way:By Ocean
  • Lead time:within 30 workdays after your order confirmation and deposit

Application:

this kind machine is roll to roll screen printing machine.It is suitable for cotton,elastic tape,solid color printing. very easy to install and operate

Function:

1.the machine is solid printing and color fastness,it is perfect for all kind of label printing especially for dark color materials

2.it is small dimension, low energy consumption

3.With IR drying system,the products can be dried directly after printing

4. it is single color screen printing press with sensor allow accurate repeat printing.

5.It is also available for double side printing and suitable for security identification ink apply on woven labels as well.

Technical parameter:

Max. Feeding width:180mm
Max. Printing width:150mm
Max. Printing Length:400mm
Frame Size (L*W):550*300mm
Overall /power:1.3KW/220V
Size (L*W*H)"2000*1000*1300mm
Max.speed: 800times/hr

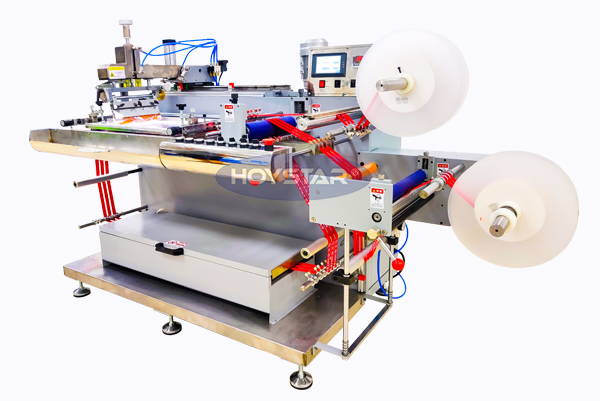

Machine Picture:
