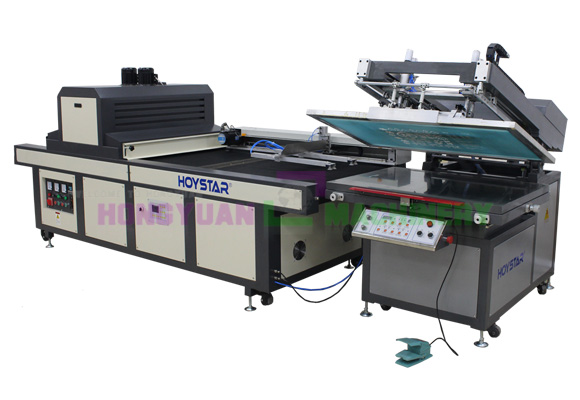

UV Spot Screen Printing Machine

  • Model number:GW-6090X-UV
  • Printing area:600mm*900mm
  • Printing speed:1200PCS/Hr
  • Machine size:4500*1200*1700mm L*W*H
  • Gross weight:650KG
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:wooden box
  • Delivery way:by sea or by air
  • Lead time:Within 25 workdays
  • Worktable size:700*1000 MM

UV Spot Screen Printing Machine

Application:

It is a big size vertical flat screen printing machine with auto unloading device and UV curing machine, It is suitable for printing PVC, it can only print  film sheet, pvc sheet, pp sheet, paper,key film, plastic sheet . and high precision  screen printing within printing area 600*900mm

Function:

1.Tilted-arm structure, The forward/backward action of printing head is drived by electromotion
2.SCM controlled circuit,printing and screen plate up/down adopts independent driver source
3.Frequency conversion motor drives printing knife rest,magic eye controls strock distance,independent adjustment
4.There are average air intakes on high -hardness Worktable,
5.Power vacuum adsorption,make sure accurate color registration
6.There are three kinds of models,such as manual.semi-automatic and full-antomatic,printing indirect time is conrolled by figure
7.independently designing machine head up/down equipment,it is convenient to replace scraper,ink covering blades and frame and easy to clean screen frame
8.Double guide rod left/right screen arm,and equipt plate distance adjustale equipment,easily adjust

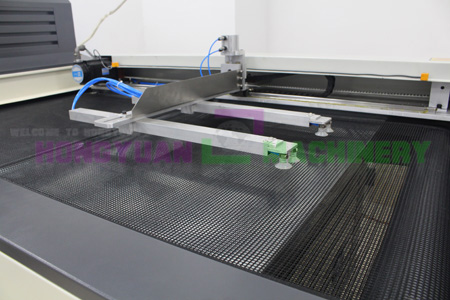

9.This machine is with UV drying machine and automatic unloading system

Technical parameter:

1.Max.printing area:600*900mm

2.Max.printing speed:1000PCS/Hr

3.Power:380V/50HZ

4.Air pressure:5-7bar
5.Worktable size:700*900MM
6.Max.workpiece height:0-20mm
7.Number of Color: single color

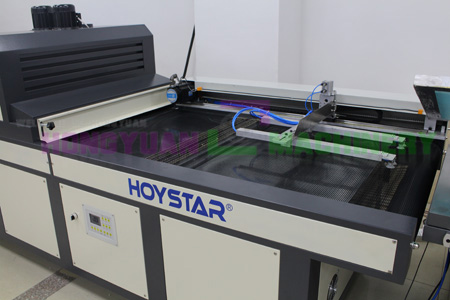

UV curing machine

UV lamps: 5.6KW*2PCS

Conveyor width: 800mm

Machine length: 3000mm

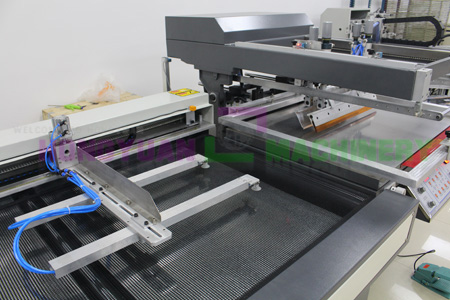

Screen Printing Machine With Auto Unloading System



Screen Printing Machine With Auto Unloading System

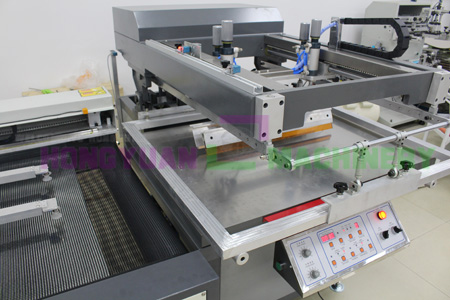

UV Spot Screen Printing Machine


UV Spot Screen Printing Machine
